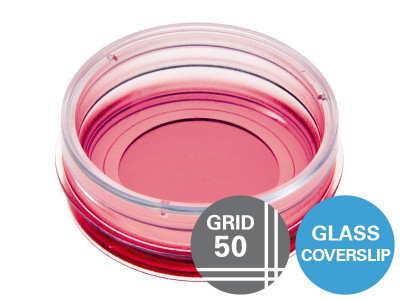

μ-Dish 35 mm, high Grid-50 Glass Bottom
Model：81148
Brand：ibidi
Specifications ：30 (individually packed)
Introduction：A 35 mm imaging dish with a glass bottom and an imprinted 50 μm cell location grid Ideal for locating cells or cell clusters Easy cell counting per defined area Glass coverslip for TIRF and single molecule applications
Applications
Locating cells or cell clusters, e.g., transfected cells for clone picking
Counting events per defined area (e.g., when calculating transfection efficiency)
Providing a reference structure for cell movements
Treatment of distinct single cells, such as in microinjection
Specifications

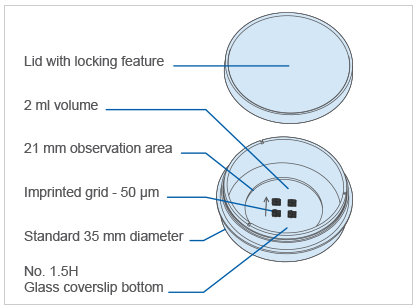

Geometry of the μ–Dish 35 mm, high Glass Bottom
| Diameter dish | 35 mm |
| Volume | 2 ml |
| Growth area | 3.5 cm2 |
| Coating area using 400 μl | 4.1 cm2 |
| Diameter observation area | 21 mm |
| Height with / without lid | 14 mm / 12 mm |
| Bottom: Glass coverslip No. 1.5H, selected quality, 170 μm +/- 5 μm | |

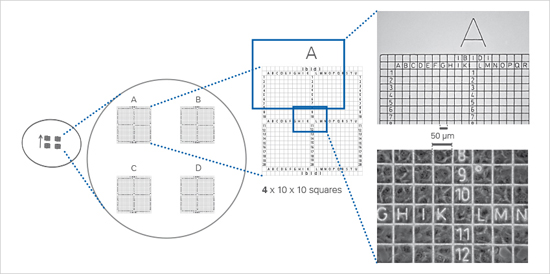

Geometry of the Grid-50
| Number of squares | 4 x 400 |
| Repeat distance | 50 μm (+/- 1 %) |
| Groove width | 5 μm (± 1 μm) |
| Groove depth | < 5 μm |
